Aluminum Hydraulic ShoresVertical Shoring

FOR NARROW TRENCHES & EXCAVATIONS

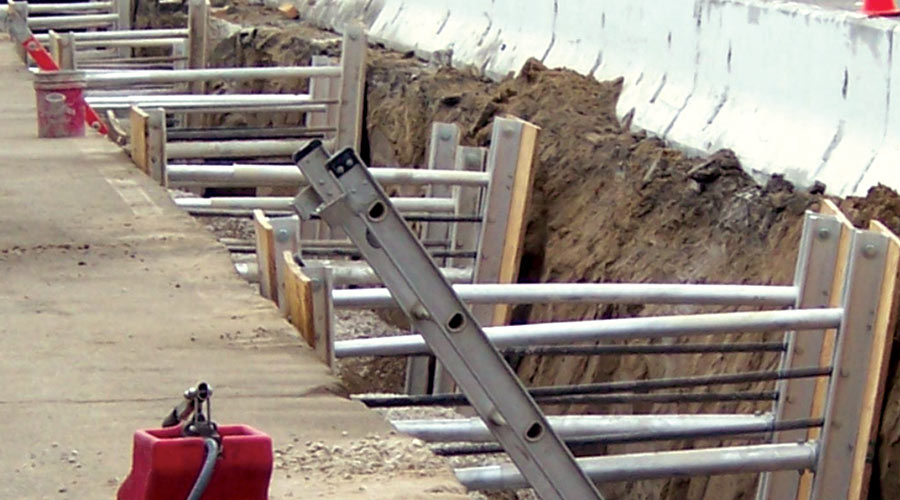

Our lightweight hydraulic aluminum shoring was developed for narrow trenches and excavations. They are designed to prevent cave-ins in all but the most unstable soil conditions through hydraulic pressure by supporting the side walls of the trench. Approved wood sheeting may be used in conjunction with vertical aluminum shores when soil conditions indicate trench face sloughing or raveling.

With its hydraulic system, aluminum hydraulic shores can be installed by a single worker as fast as the trench is cut. This greatly reduces shoring time and cuts costs dramatically.

Available in standard heights, or as timber mounted Multi-Shores, custom sized and ready to install to the full depth of your trench.

The Pacific Shoring 3” Hydraulic Corner Shore uses two 3” aluminum hydraulic cylinders mounted on 18” or 24” long heavy-duty waler rails. Heavy-Duty plywood handles are attached to the assembly for the purpose of lifting and setting the corner shore into place and providing vertical safety support so that the corner shore cannot fall into the excavation. In all situations, a competent person should determine that the corner shore is properly set and fixed into position.

• Up to 20 ft. Depth Rating in C-60 Soil
• 18” or 24” long Heavy-Duty Waler Rail
• Features Dual 3” Hydraulic Cylinders
• Steel Oversleeves Available
• End Loading Capabilities
