FLEX-SHIELD™ TRENCH BOXES BY TRENCH SHORING COMPANY

Slide Rail systems

Trench Shields

Are All Trench Shields Created Equal? Hardly.

Other manufacturers' trench shields (also called trench boxes) are built with straight sidewalls that bow in under pressure when they are in the ground, making them almost impossible to pull. Trench Shoring Company's unique flex-Shield trench boxes are the only ones with a mid-section camber, making the box inches wider in the middle. When Flex Shield is in the ground and under pressure, its sidewalls become straight. The result: ease of movement on those deep, tight, hard-pulling jobs. The Flex Shield actually feels self propelled as it flexes.

You've Got Four Wall Protection! Flex-Shield™ Trench Boxes

Trench Shield / Box Advantages

  • Narrow Sidewalls - Flex-Shields are constructed with the narrowest possible sidewalls, so less soil has to be excavated and there is less backfill and compaction.

  • Blunt Edges for Flexibility - By eliminating the knife edge found on the bottom of many trench boxes, the Flex-Shield can be used in any configuration when stacked in deep trenches.

  • Lightweight But Strong - Flex-Shields are built to give the highest pounds per square foot (PSF) for use in the deepest trenches.

  • Engineered to Work for You - Both standard and custom Flex-Shields are designed by a Registered Civil Engineer in conjunction with Trench Shoring Company specialists.

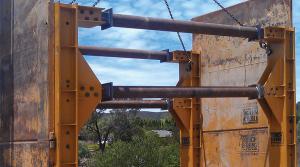

High Clearance Spreaders

Hi-Clearance Spreader Arches are designed for use with most Efficiency trench shields. Efficiency’s Hi-Clearance Arch spreaders are available in three styles: Pin-in-Place Arch, Clad Arch, and the Stacking Split Arch. The Hi-Clearance Arch system is designed for use with most Efficiency trench shields.

  • Provides 10 feet of vertical clearance when used on a 10’ tall trench shield
  • Provides 8 feet of vertical clearance when used on an 8’ tall trench shield
  • Designed to fit on all 8- and 10-foot tall Pro Series trench shields
  • Full range of bolt-on extensions to provide up to 20’ of internal width
  • Professional Engineer Certified to meet or exceed O.S.H.A. requirements
High Clearance Spreader
Manhole Boxes

Manhole Boxes

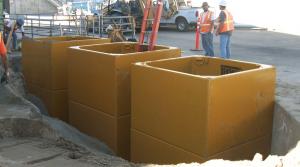

Trench Shoring Company Manhole Boxes provide four wall protection for the ultimate in worker safety. Specially built for manhole installations, tie-ins and repair work, manhole boxes provide the flexibility you need with the protection OSHA requires. Manhole boxes are available in 4’, 6’ and 8’ heights and come either 6', 8’ or 10’ square. Manhole boxes are available with solid sides or cut outs at the bottom. Specially built for manhole installations, tie-ins and repair work. Manhole boxes can be stacked in combination with Flex-Shield boxes for unique applications.
