Timber mounted Hydraulic ShoresVertical Shoring

FOR NARROW TRENCHES & EXCAVATIONS

For use in trenching applications where the trench depth is deeper than the capacity of standard vertical shores. Timber is attached to heavy-duty aluminum rails in combination with hydraulic cylinders to make a complete unit. Available for timber lengths of 18', 20' and 22'.

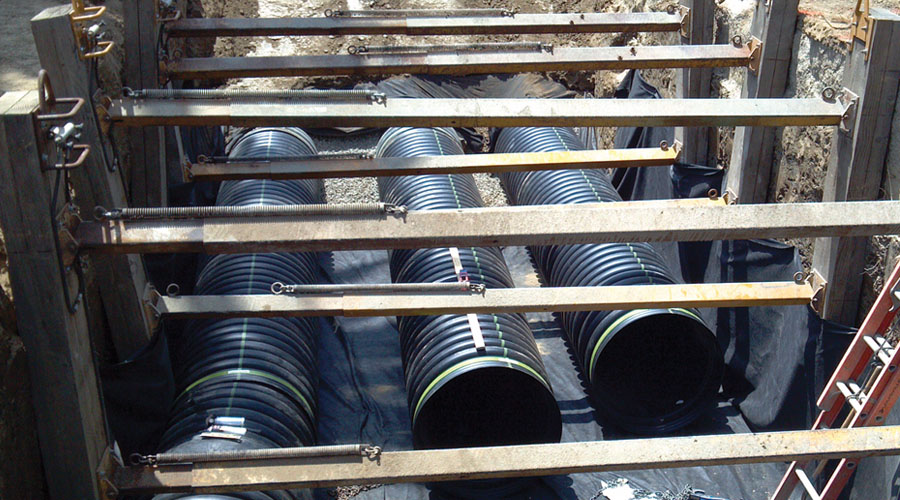

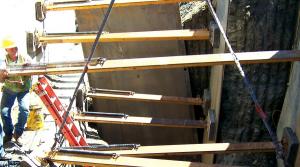

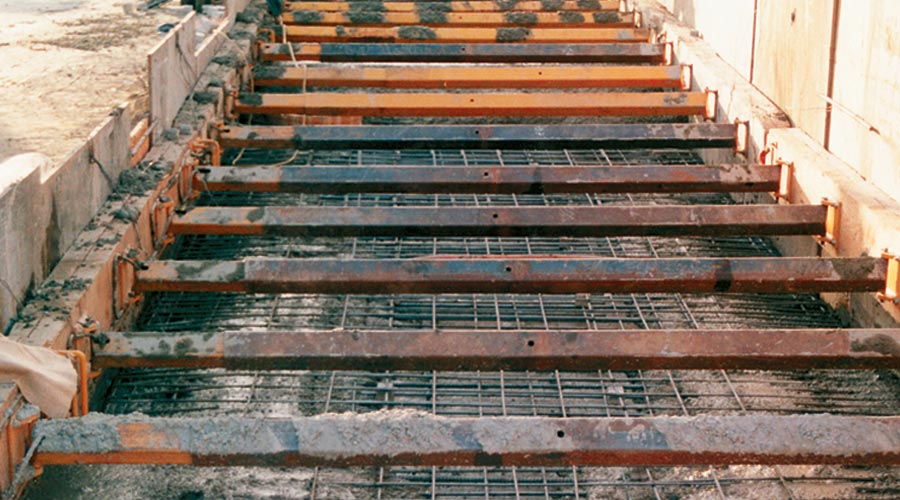

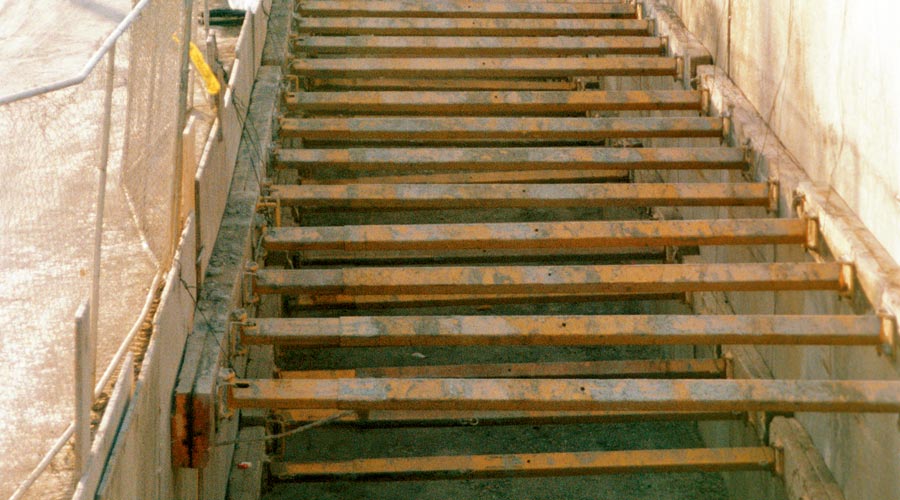

Z-Shore is Trench Shoring Company's own, specifically designed answer to the problems of wider excavations. It is built around a system of hydraulic rams and features a steel jacketed structure to withstand the rigors of heavy duty jobs. It goes into the trench in one piece for fast, easy installation.

Z-Shore can be mounted on timbers of varying thickness, or even steel beams to meet your structural needs in the space allowed. It fits trenches from 5 to 30 feet wide, of any depth, with a hydraulic stroke from 2 to 3 feet. The flexible, efficient Z-Shore also can be configured in a pre-built 4-way hydraulic frame to fit difficult or irregularly shaped holes.
